In modern directional drilling, the bit may do the cutting—but it’s the power source behind it that determines performance. Two key systems drive and steer the bit: the Mud Motor and the Rotary Steerable System (RSS).
Both technologies aim to control well trajectory and improve drilling efficiency, but they represent very different approaches in mechanics, control, and cost.
Understanding their distinctions is essential for optimizing bit performance—especially when paired with advanced PDC cutters or tricone bits.
A Mud Motor, such as those designed by Cangzhou Great Drill Bits Co., Ltd., is powered by drilling fluid pressure.
The motor converts the fluid’s pressure energy into mechanical energy (rotation and torque) through a power section composed of a rotor and stator.
To steer, the motor housing contains a bend that points the bit toward the desired direction. During steering (“sliding”), the drill string stops rotating, and only the motor turns the bit—pushing it forward along the set path.
By contrast, an RSS maintains continuous rotation of the entire drill string while steering.
It uses internal hydraulic or mechanical pads to push the bit sideways or alter its tilt—eliminating the need for a bent housing or slide drilling.
The result: smoother boreholes and better real-time trajectory control, but at a significantly higher cost.
| Feature | Mud Motor (Great DrillBit Downhole Motor) | Rotary Steerable System (RSS) |
| Power Source | Hydraulic energy from drilling fluid converts to mechanical energy via rotor-stator. | Continuous mechanical rotation from surface drive with internal steering pads. |
| Steering Method | Point-the-Bit via bent housing; requires sliding mode. | Push/Point-the-Bit via internal mechanisms; continuous rotation. |
| Torque & RPM | High Torque, Lower RPM – ideal for PDC or tricone bits. | Lower Torque, Higher RPM, dependent on surface rotation. |
| Dog-Leg Severity (DLS) | Capable of high DLS (sharp curves). | Produces smoother, lower DLS wellbores. |
| Cost | Economical – ideal for most onshore and geothermal applications. | High investment – used mainly in offshore or ERD projects. |
| Maintenance & Reliability | Simple structure (bypass valve, power section, cardan shaft, drive shaft) for easy servicing. | Complex electronics and hydraulics; higher maintenance cost. |

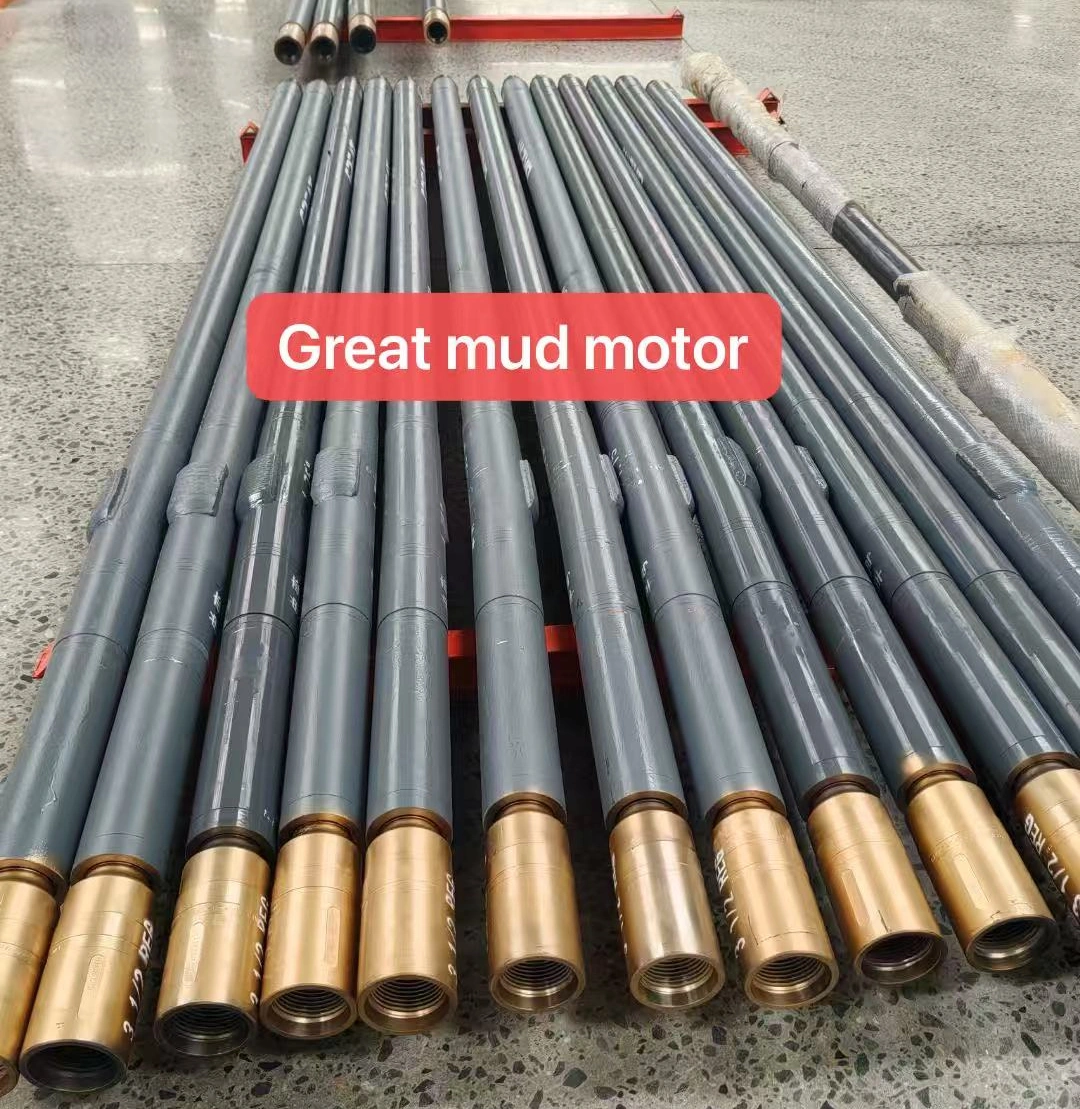

Our Downhole Drilling Mud Motor is designed for versatility and reliability across oil, gas, geothermal, and HDD (Horizontal Directional Drilling) operations.
Main Assemblies:
By-pass Valve – for flow control and circulation.
Power Section (Rotor + Stator) – converts hydraulic energy into torque.
Cardan Shaft (Universal Shaft) – transmits motion smoothly.
Drive Shaft – delivers final rotation to the drill bit.
Power Section Options:
| Type | Lobe Example | Performance | Typical Application |
| High Speed / Low Torque | – | High RPM for soft formations and directional control. | PDC bits, soft formations. |
| Medium Speed / Medium Torque | 5:6 Lobe | Balanced speed and torque. | Directional & horizontal wells, general use. |
| Low Speed / High Torque | 7:8 Lobe | Strong torque for harder formations. | PDC or tricone bits in medium-hard rock. |
Available Sizes: 95mm, 102mm, 120mm, 127mm, 165mm, 172mm, 203mm, 244.5mm
Cost-Sensitive Operations: Ideal for geothermal wells, HDD, and onshore drilling where cost control is critical.
High-DLS Wells: Delivers strong torque and aggressive build rates with customizable bend settings.
Medium to Hard Formations: Pairing our 7:8 Lobe motor with a PDC bit maximizes torque and ROP.
Simple Maintenance: Fewer moving parts mean higher uptime and easier field service.
Extended Reach Drilling (ERD): Continuous rotation reduces friction and drag.
Complex 3D Wells: Better trajectory control for long horizontal sections.
Real-Time Steering Needs: Ideal where downhole feedback and immediate adjustments are critical.
At Cangzhou Great Drill Bits Co., Ltd., we don’t just manufacture motors—we engineer precision energy transfer systems that maximize drilling efficiency.
Customized Configurations: From 5:6 to 7:8 lobe designs to match torque and speed needs.
Broad Size Range: 95mm to 244.5mm for any wellbore requirement.
Proven Performance: Reliable in oil & gas, geothermal, and HDD environments.
Expert Technical Support: Our engineers help you match the right motor type to your bit and formation for maximum ROP.
Choosing between a Mud Motor and an RSS isn’t about which is superior—it’s about which aligns with your drilling goals, formation, and budget.
For the majority of directional drilling projects—where torque, control, and cost-efficiency matter most—a high-performance GreatDrillbit Downhole Mud Motor remains the most practical and powerful choice.
Ready to boost your next well’s performance?
Contact our experts to configure a customized downhole motor that powers your PDC or tricone bit with precision, strength, and reliability.
