Downhole Drilling Mud Motors (API 7-1 & ISO 9001 Certified)

API 7-1 & ISO 9001 Certified Downhole Mud Motors (95mm–244.5mm OD) precision-machined on multi-axis Mazak CNC from hot-forged steel. Engineered with high-torque 7:8 / 5:6 lobe configurations and premium HNBR stators to withstand up to 150°C (302°F) in harsh HDD and oilfield drilling.

GREAT DRILL BITS can be customized and supply various sizes, type downhole motor according to the drilling demand.

Heavy-Duty Drilling Performance from 95mm to 244.5mm OD for Oil & Gas, HDD, and Geothermal Engineering

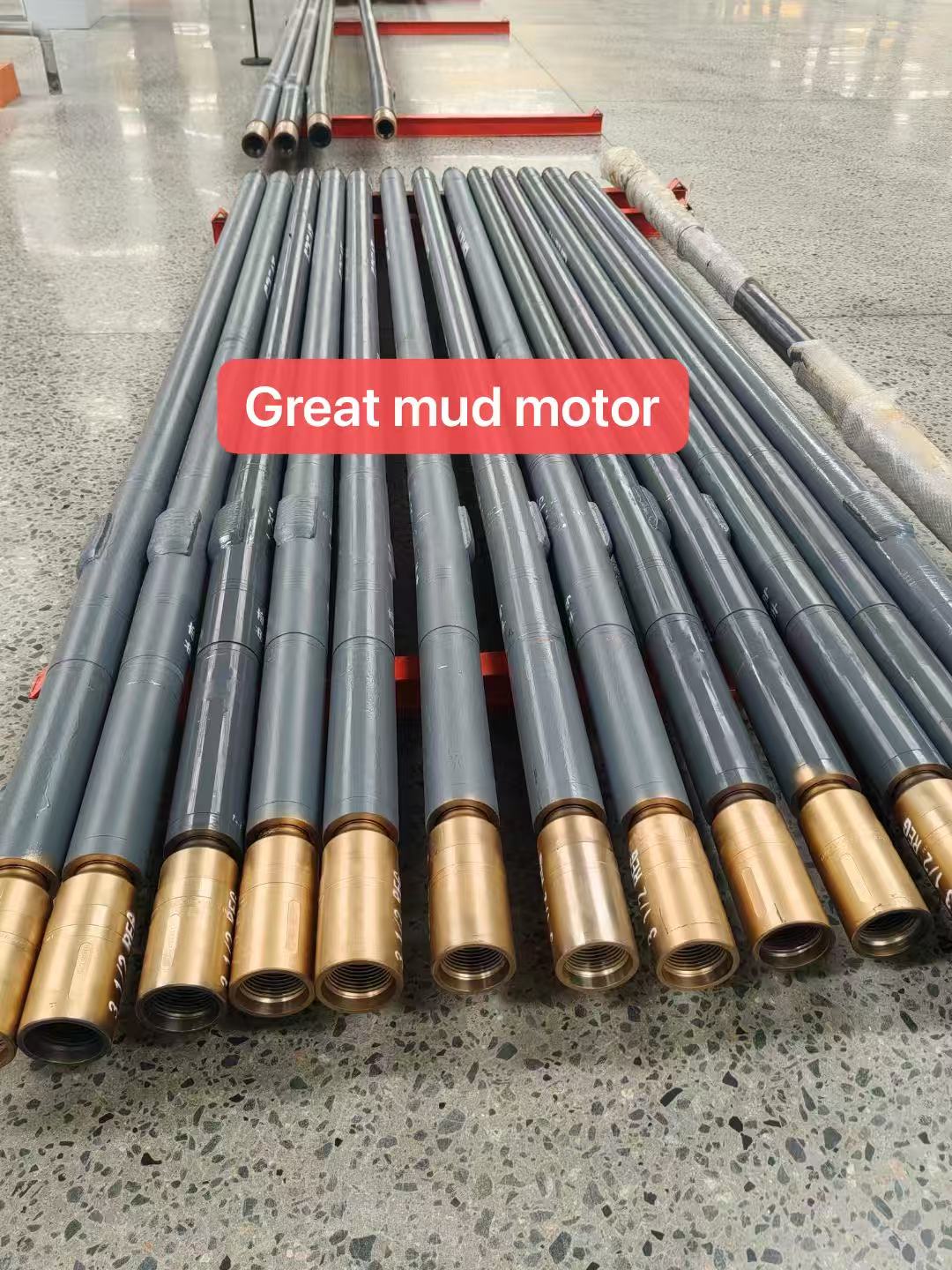

A Downhole Motor (Mud Motor) is a positive displacement motor (PDM) driven by drilling fluid. By converting hydraulic pressure energy into mechanical rotational power, it directly rotates the drill bit at the bottom of the hole, dramatically increasing the Rate of Penetration (ROP) in vertical, directional, and horizontal drilling operations.

As a professional downhole motor manufacturer with years of experience, we eliminate downhole uncertainty. All our downhole drilling motors are engineered and manufactured strictly within our API 7-1 & ISO 9001:2015 certified facilities. By leveraging raw blanks that are hot-forged and heat-treated prior to machining, and utilizing the world’s latest multi-axis CNC workstations from Mazak, Japan, we ensure unmatched structural integrity and superior torque output under extreme downhole environments.

Master Specification Table

Note: GREAT supplies customized sizes and advanced technical parameters based on your local drilling hydraulics. Contact our engineering desk for tailored configurations.

Advanced Power Section Configurations for Targeted Formations

To ensure optimal mechanical efficiency, GREAT configures the internal rotor and stator combinations according to specific drilling parameters:

1. High Speed / Low Torque Configurations (e.g., 4:5 Lobe)

Best Applied Formations: Soft, unconsolidated formations, shallow wells, and high-speed micro-directional profiles.

BHA Synergy: Perfectly paired with premium GREAT Steel Body PDC Bits to maximize continuous cutting speed and ROP without over-torquing.

2. Medium Speed / Medium Torque Configurations (e.g., 5:6 Lobe)

Best Applied Formations: Medium hard rock, multi-layered interbedded strata, and conventional directional or horizontal well trajectories.

BHA Synergy: Highly versatile option often paired with either Matrix Body PDC Bits or TCI Tricone Bits for stable tool life across variable rock layers.

3. Low Speed / High Torque Configurations (e.g., 7:8 Lobe)

Best Applied Formations: Hard rock formations, high-abrasivity zones, and Large-Diameter Horizontal Directional Drilling (HDD).

BHA Synergy: Delivers the massive continuous torque required to drive complex GREAT Rock Reamers, Crocodile PDC Reamers, or Heavy-Duty Hole Openers through rigorous rock strata without stalling the power section.

Engineering Material Edge: Built for Extremes

What separates a GREAT Mud Motor from generic assemblies is our rigorous material choice and proprietary processing:

Proprietary Elastomer Technology (Stators):

We provide customized, high-density NBR and HNBR (Hydrogenated Nitrile Butadiene Rubber) stators. These elements are chemically optimized to withstand downhole temperatures up to 150°C (302°F) while remaining entirely stable in both high-salinity water-based muds and harsh oil-based muds (OBM).

HVOF Rotor Surface Engineering:

All alloy steel rotors are precision CNC-ground and treated with HVOF (High-Velocity Oxygen Fuel) Tungsten Carbide coatings, achieving a surface hardness exceeding HRC 68 to drastically eliminate erosion caused by high-sand-content drilling fluids.

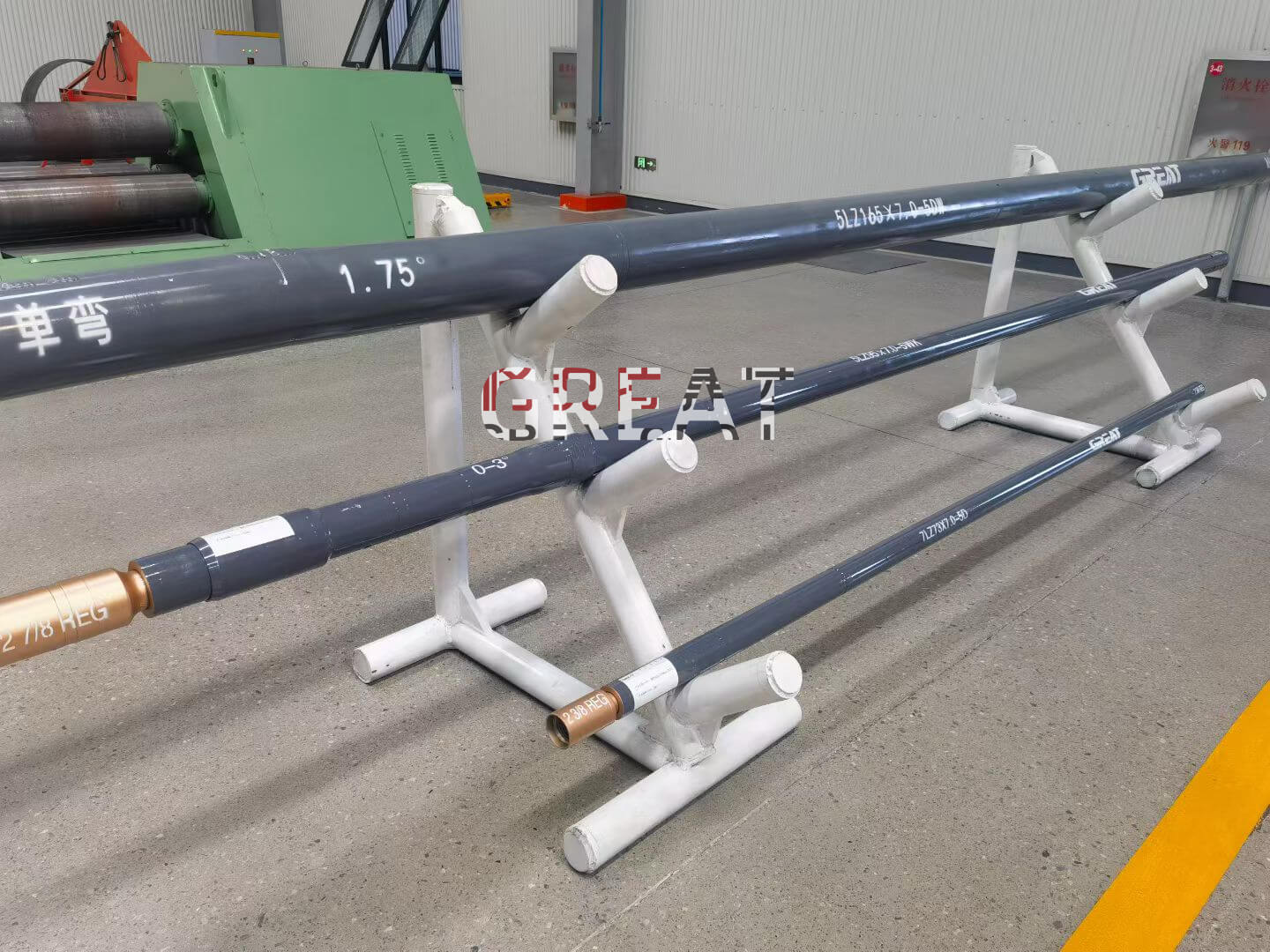

Adjustable Bend Housing (0° - 3°):

Provides precise surface alignment adjustments to achieve the required Dogleg Severity (DLS) and exact kick-off requirements in complex directional well trajectories.

One-Stop BHA Integration: Complete Your Drilling String

A mud motor performs only as well as the cutting tool attached to it. GREAT excels at providing fully compatible Bottom Hole Assembly (BHA) solutions.

For hard rock HDD or mining reaming, integrate our low-speed 7:8 motors with a Tricone Bit or an HDD Rock Reamer.

For rapid petroleum or geothermal exploration, combine our medium-speed motors with high-durability Matrix Body PDC Bits to establish a highly reliable drilling package.

If you are unsure about hydraulics matching or stator rubber compatibility, please share your well profile parameters. Our engineering team will respond within 24 hours.

 Downhole Mud Motor FAQ

How do I select the right mud motor lobe configuration for an HDD project?

In Horizontal Directional Drilling (HDD), continuous back-reaming and rock open-holing generate massive resistance, making torque the critical factor. A 7:8 lobe configuration provides massive low-speed torque that prevents stalling when rotating large-diameter rock reamers. For smaller pilot holes or softer alluvial strata, a 5:6 configuration balancing speed and torque provides a cleaner penetration sweep.

Can GREAT manufacture downhole motors according to custom blueprints and CAD drawings?

Yes. Supported by our experienced engineering R&D team and Japanese Mazak multi-axis CNC infrastructure, GREAT specializes in custom industrial OEM manufacturing. We recognize the high proprietary value of downhole designs; GREAT is fully prepared to sign a Non-Disclosure Agreement (NDA) within 24 hours of receiving client drawings to fully secure your patents and intellectual property.

How do I choose the right downhole motor lobe configuration for hard rock drilling?

Answer: For hard rock drilling, selecting a high-torque configuration is critical to prevent stalls. A 7:8 lobe configuration operates at lower speeds but delivers massive, continuous torque, making it ideal for tough formations and large-diameter reaming. Conversely, a 5:6 lobe configuration offers medium speed and torque for interbedded strata, while a 4:5 configuration is optimized for high-speed drilling in soft formations.

What is the temperature limit for NBR vs HNBR mud motor stators?

Standard NBR (Nitrile Butadiene Rubber) stators generally withstand downhole temperatures up to 120°C (248°F). For extreme environments, proprietary HNBR (Hydrogenated Nitrile Butadiene Rubber) stators push the thermal threshold up to 150°C (302°F). HNBR also provides superior chemical stability and wear resistance when exposed to harsh Oil-Based Muds (OBM) and high-salinity fluids.

Why does rotor coating matter in downhole motor life, and which is best?

 The rotor coating directly determines a mud motor's resistance to erosion from high-sand drilling fluids. While standard chrome plating is common, premium rotors treated with HVOF (High-Velocity Oxygen Fuel) Tungsten Carbide coating achieve a surface hardness exceeding HRC 68. This drastically minimizes abrasive wear, extends tool life, and maintains consistent volumetric efficiency under high differential pressure.

How does an adjustable bend housing affect directional drilling trajectories?

An adjustable bend housing allows operators to alter the motor's surface alignment angle, typically ranging from 0° to 3°. By adjusting this angle on the surface, drilling engineers can precisely control the Dogleg Severity (DLS) and kick-off rates required to steer the Bottom Hole Assembly (BHA) along complex horizontal or directional well paths.
