Rock Reamer

Rock Reamer Bits With Replaceable roller cone bit

Overview of Rock reamer

The Rock reamer produced by GREAT company is used to expand the diameter of the pilot hole and is mainly used for horizontal directional drilling of oil, natural gas, electric power, and other pipelines. The Rock reamer is designed for reaming a variety of rock formations in the ground. The cone part is made up of a milling cutter for soft formations and a carbide insert with hard formation for different formations.


The cutting teeth of the cone use TCI cutters or Steel tooth cutters. And the teeth have good wear resistance and the speed of the drill is fast. Intensive palm tip welding and full palm back protection, the cones are divided into back dimension and the diameter is protected by a protective design to effectively enhance the resistance of the drill bit.


Apply wear-resistant alloy or carbide tooth on the front stiffener or block surface. In order to reduce the weight of the hole opener without affecting the support strength, the front centralization plate adopts a hollow design.


GREAT hole opener uses a sealed high-energy rolling bearing system processed and assembled at an extremely strict tolerance.


Each reamer has a sealed automatic compensation lubrication system that balances the internal and external pressure of the bearing and protects the bearing and sealing system.

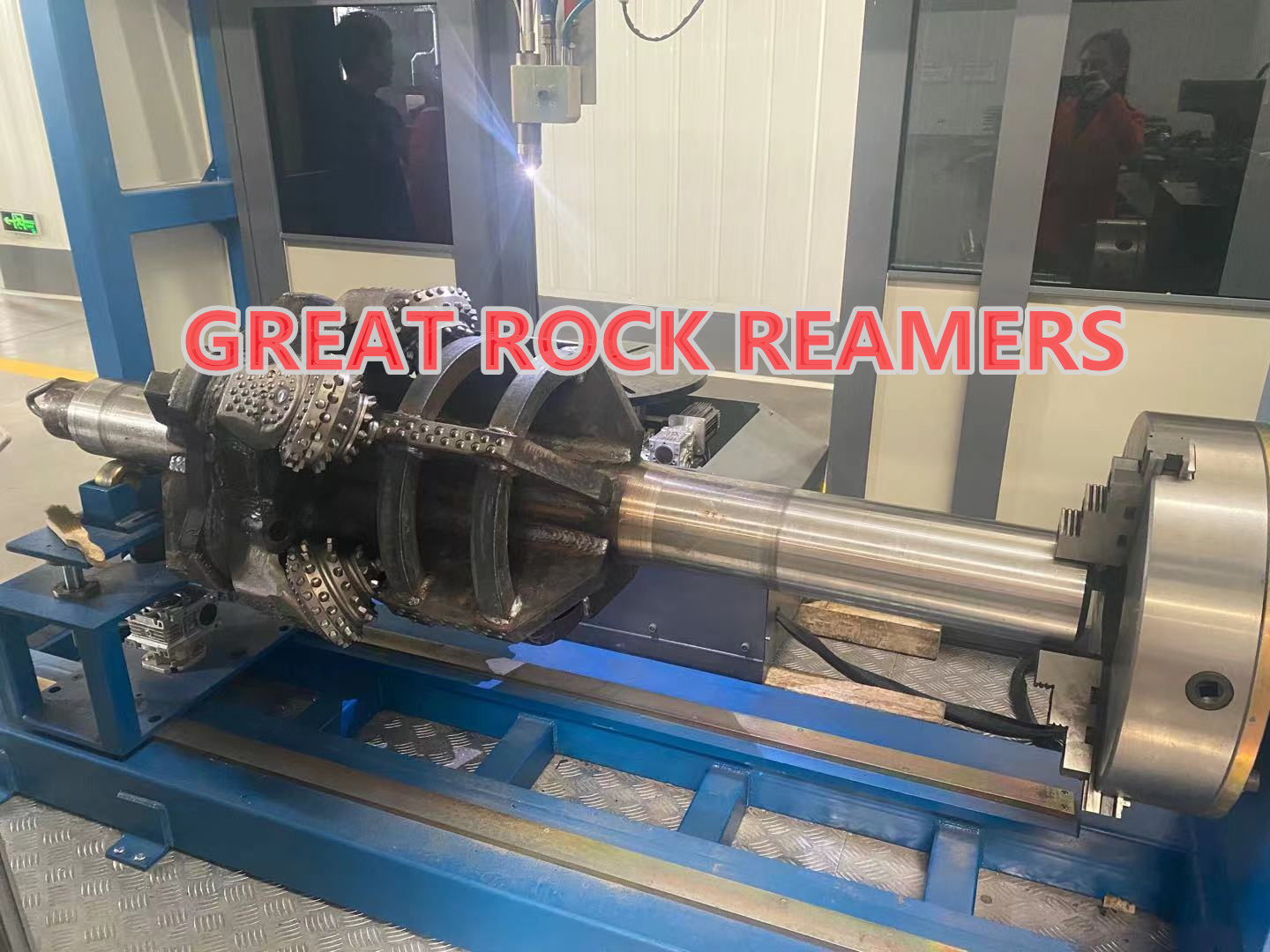

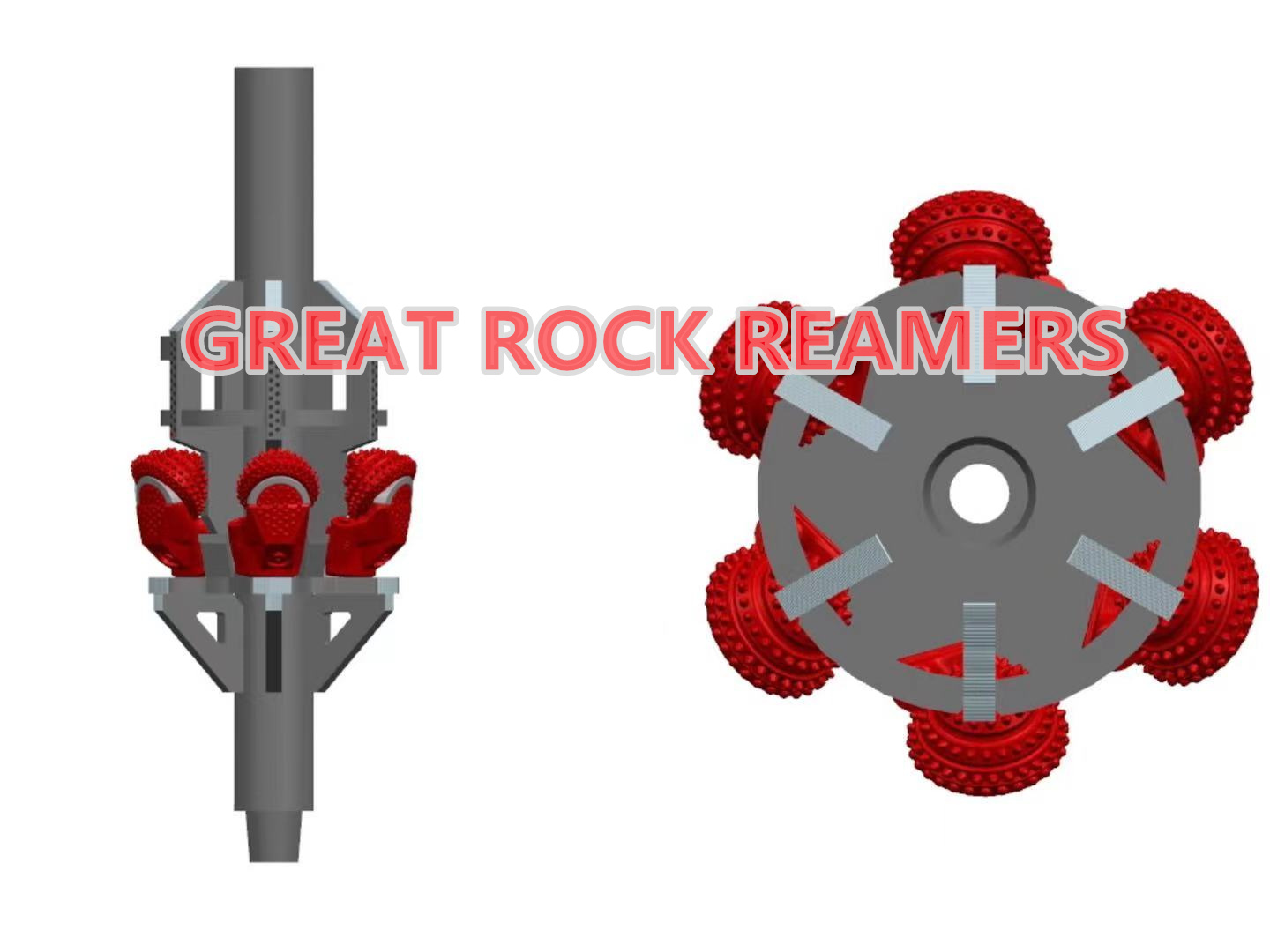

The Details of Rock Reamer


the details of rock reamer


GREAT Rock Reamer-1


GREAT Rock Reamer-2

GREAT Rock Reamer-3


GREAT Rock Reamer-4


The Advantage of Rock Reamer

  • The hole opener produced by GREAT is a low-torque reamer that can be reamed with a small rig to reduce drilling costs.

  • The cone unit on the GREAT hole opener also can be replaced, and a set of bodies can be used multiple times, saving engineering costs for customers.

  • The production of large-size tricone bit or multi-cone drill bits is not only difficult to process but also extremely costly.

  • The use of GREAT rock reamer can solve these problems, and manufacturers can produce various sizes of hole openers according to customer requirements.

It is one of the blggest PDC drill bit manufacturing companies in Asia, and is qualifed as suppler for CNPC, Sinopec and CNOOC:

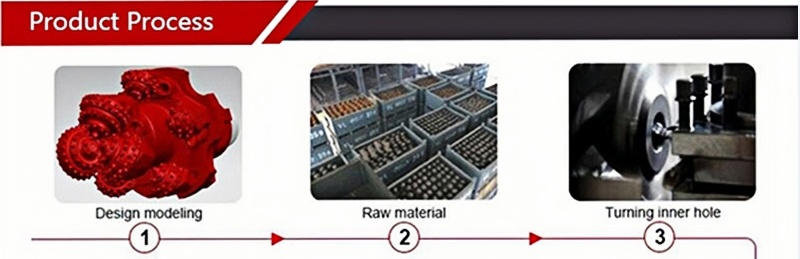

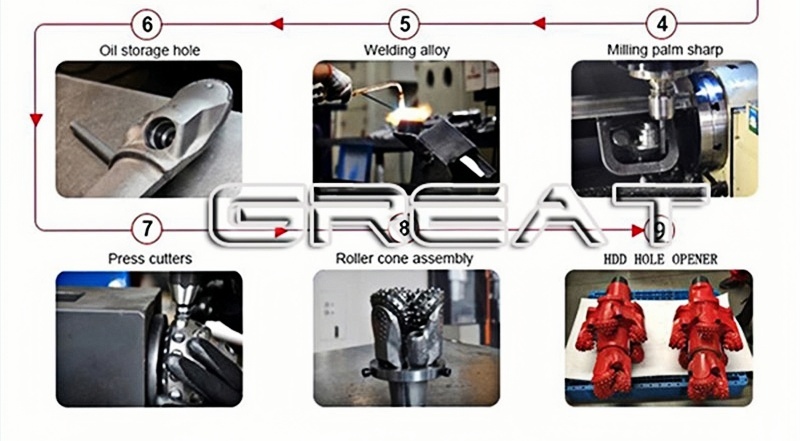

Rock Reamer Process

Rock Reamer Process
