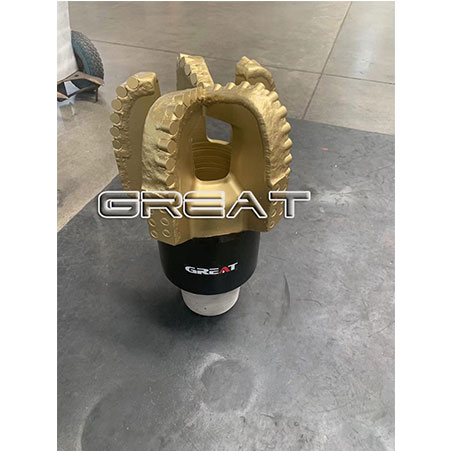

RC PDC Bit

Reverse circulation PDC bit for geological exploration samples

Overview RC Drill Bit


RC PDC drill bit from GREAT are manufactured from AISI 4145H heat-treated steel. Reverse circulation drill bits are widely used in geological exploration samples, oil wells, mining, and other fields. The reverse circulation drilling method combined with RC drill bit and hammer is the preferred drilling method for initial exploration, ore body development, and other exploration drilling. By completing the drilling project objectives within the budget, reverse circulation drilling with RC bit provides a more cost-effective drilling method.

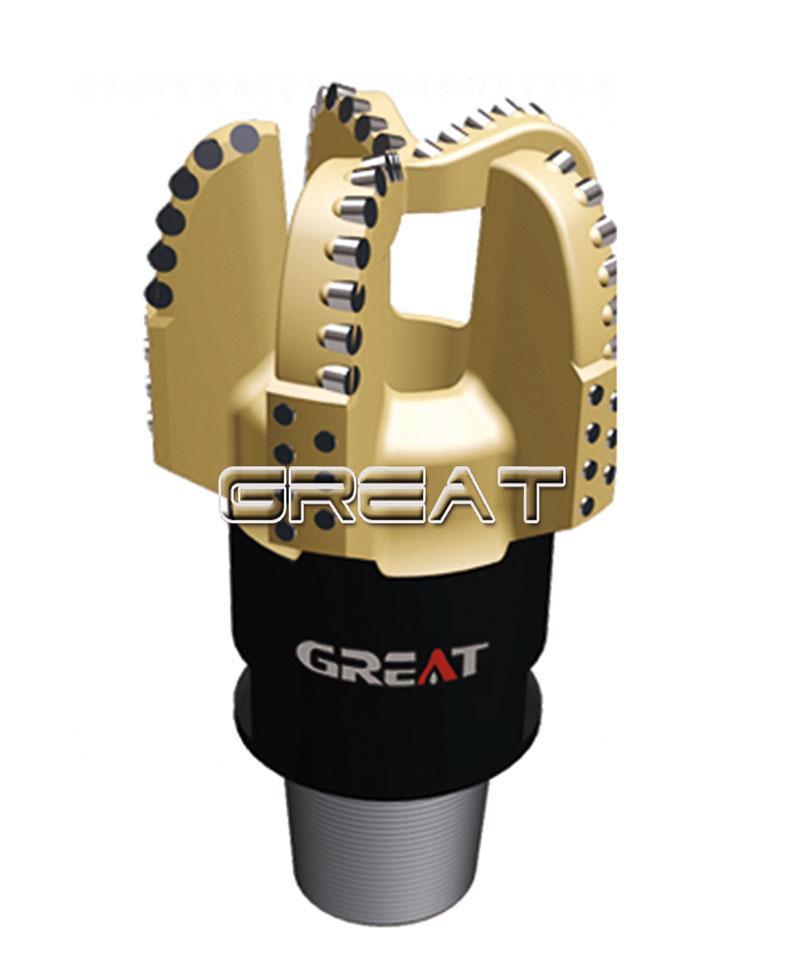

The Details of RC Drill Bit


RC Drill Bit


The Specification of RC Drill Bit


Reaming Size12 1/4"Nozzle Qty3NZ
Pass Thru Size10 1/2"Gauge Length2.5"
Blade5Connection6 5/8" API REG
Primary Cutter Size16mmMake up Torque(kN.m)51.7~56.9
Rotary Speed(rpm)60~260Weight on Bit(KN)30~260
Max.WOB(KN)180Flow Rate(lps)35~70


The Advantage of RC Drill Bit


The raw material of GREAT's RC diamond PDC bit is heat-treated steel and has a strict inspection tracking report.


Unlike the traditional center flush circulation, our Reverse Circulation PDC Bits save a lot of fuel and other operating-related costs.


Reverse circulation drilling can obtain preliminary geological data before analyzing cuttings samples and investing in detailed geological data for exploration coring plans. Reverse circulation is also faster than coring, which means drilling more holes.


We design RC PDC drill bit according to customer requirements and formation conditions. As one of the most trusted drill bit manufacturers in China, GREAT has professional staff and precise equipment to get the best drill bits for customers.


Using our drill bits can help you increase efficiency and maximize your operations, and we have comprehensive after-sales service and technical support.


Reverse Circulation Drill Bits Price


Reverse Circulation Drill Bits price varies based on material and type. The cost of the reverse circulation drill bit (rc drill bit)is an important part of the equipment in order to increase efficiency and quality of use, which is why you cannot compromise on their quality. All reverse circulation bits are submitted to strict quality control by GREAT to ensure that you always get maximum satisfaction. Contact us to get a quotation on a custom rc bit.


Production Process of Reverse Circulation Drill Bit



Milling Junk SlotProduction Process of Reverse Circulation Drill BitMilling RC Bit NozzlesProduction Process of Reverse Circulation Drill BitHard Facing

  Milling Junk Slot                                        Milling RC Bit Nozzles                                        Hard Facing



Checking RC Bit PocketsProduction Process of Reverse Circulation Drill BitBrazing RC Bit CuttersProduction Process of Reverse Circulation Drill BitCalibration The Gauge

Checking RC Bit Pockets                              Brazing RC Bit Cutters                                Calibration The Gauge
