Great Group | Engineering Excellence: Outstanding Performance of Great Hybrid Bits in Junggar Basin Oilfield

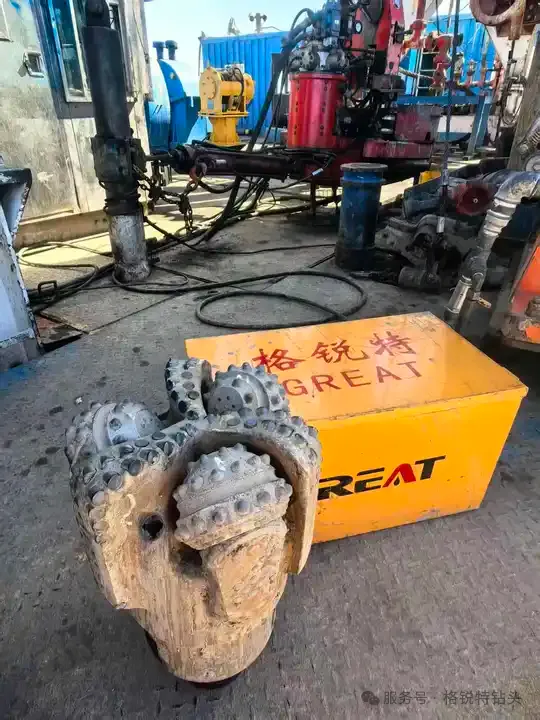

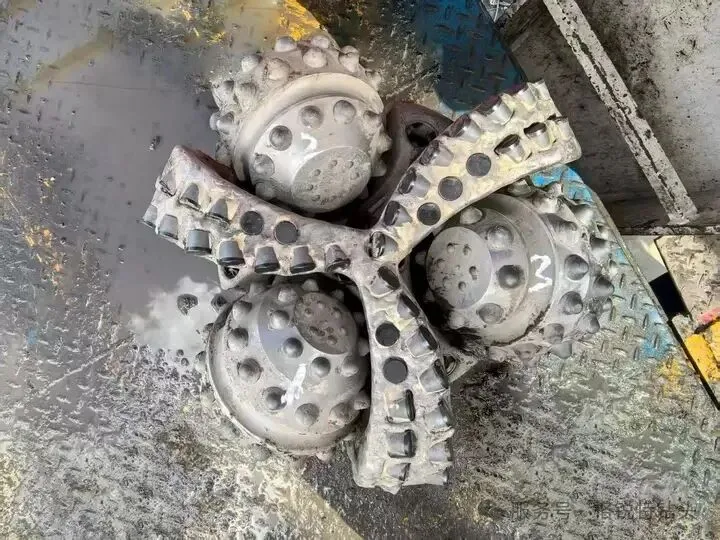

JUNGGAR BASIN, China – On September 15, Great Group achieved a significant milestone at the Mazhong-4 Well Area in the Baikouquan Oilfield, Junggar Basin. The Φ311.2mm Hybrid Drill Bit, independently developed by Great Group, delivered exceptional performance in the second-opening buildup section of the MZHW4006 horizontal well, significantly boosting drilling efficiency.

Technical Implementation and Performance Data

The operation was conducted by the KEZUAN 70203 Drilling Team. The drilling assembly utilized a high-performance configuration:

• Bit Type: Φ311.2mm Hybrid Drill Bit

• Downhole Tool: Φ216mm PDM (Positive Displacement Motor / Mud Motor)

• Configuration: 1.5°/308mm Stabilizer

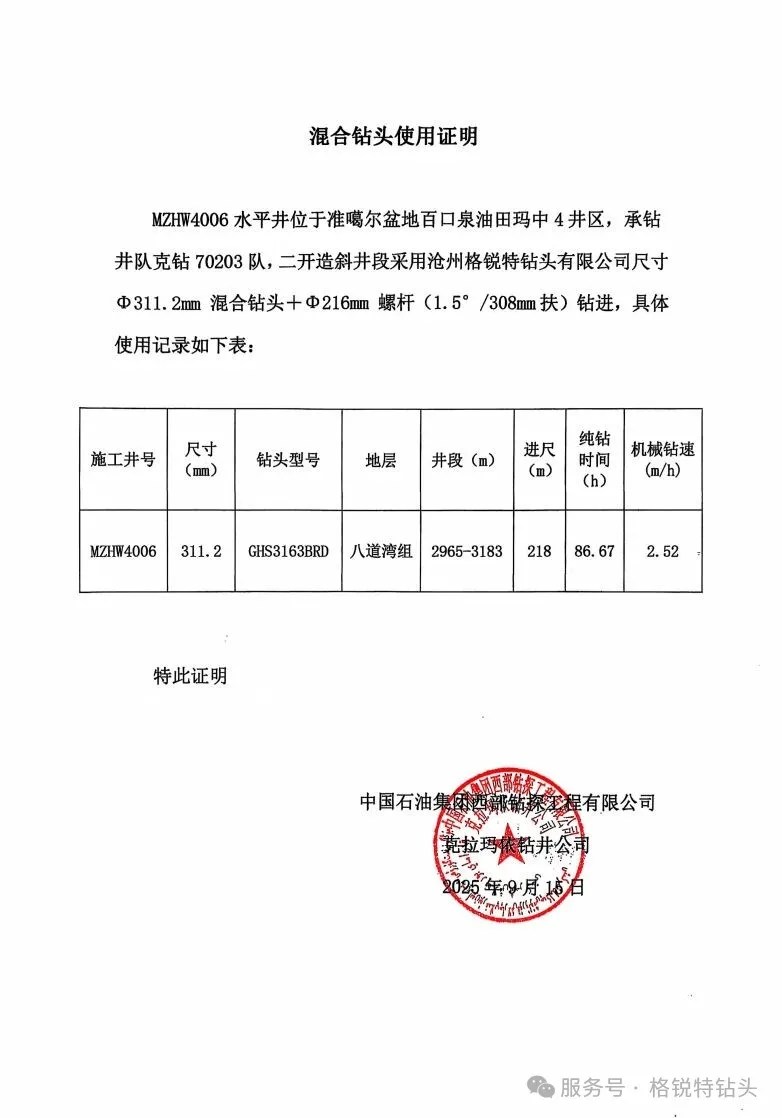

Key Operational Results in the Badaowan Formation (2965m - 3183m):

• Total Footage: 218 meters

• Pure Drilling Time: 86.67 hours

• Rate of Penetration (ROP): 2.52 m/h

Proven Adaptability in Complex Formations

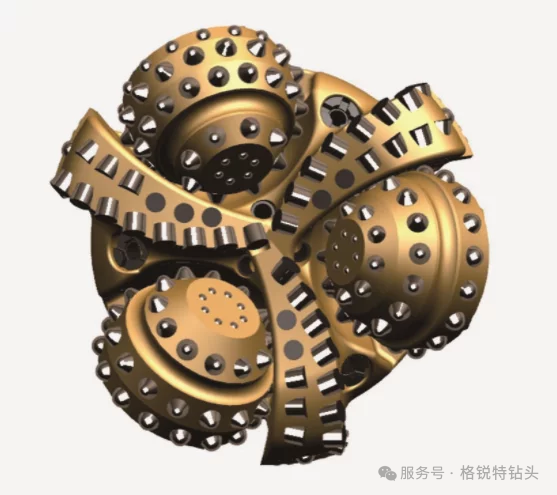

The successful application in the Badaowan Formation demonstrates the Hybrid Bit’s superior adaptability and high-efficiency drilling capabilities in challenging geological conditions. By combining the aggressive shearing of PDC cutters with the crushing action of tricone rollers, our Hybrid Bits provide stability and durability where conventional bits might struggle.

This achievement further solidifies Great Group’s position as a leader in drill bit R&D and manufacturing, providing a solid foundation for expanding our advanced drilling solutions to more global oilfield projects.
