The Art and Science of Drilling Efficiency

Polycrystalline Diamond Compact (PDC) technology has transformed drilling by delivering faster penetration rates and longer tool life. But unlocking the full potential of your PDC cutters requires more than just premium hardware.

The key lies in balancing Weight on Bit (WOB), Rotational Speed (RPM), and Hydraulics. Using a high-performance cutter without tuning these parameters is like putting a race car engine in a go-kart—you won’t see the results you expect.

This guide explains how to optimize each drilling parameter, backed by insights from GreatDrillbit’s advanced SS Series PDC cutters.

Understanding Your PDC Cutter’s Design

Before adjusting drilling parameters, it’s critical to know your cutter’s strengths.

For example, GreatDrillbit’s SSIII Series PDC cutters feature:

• Thick diamond table (up to 2.5mm): Superior wear resistance.

• Net-bond interface: Greater impact toughness.

• Advanced thermal stability: Reduced risk of cracking in high-heat environments.

These design features allow drillers to push parameters with greater confidence, provided they maintain proper WOB, RPM, and hydraulics.

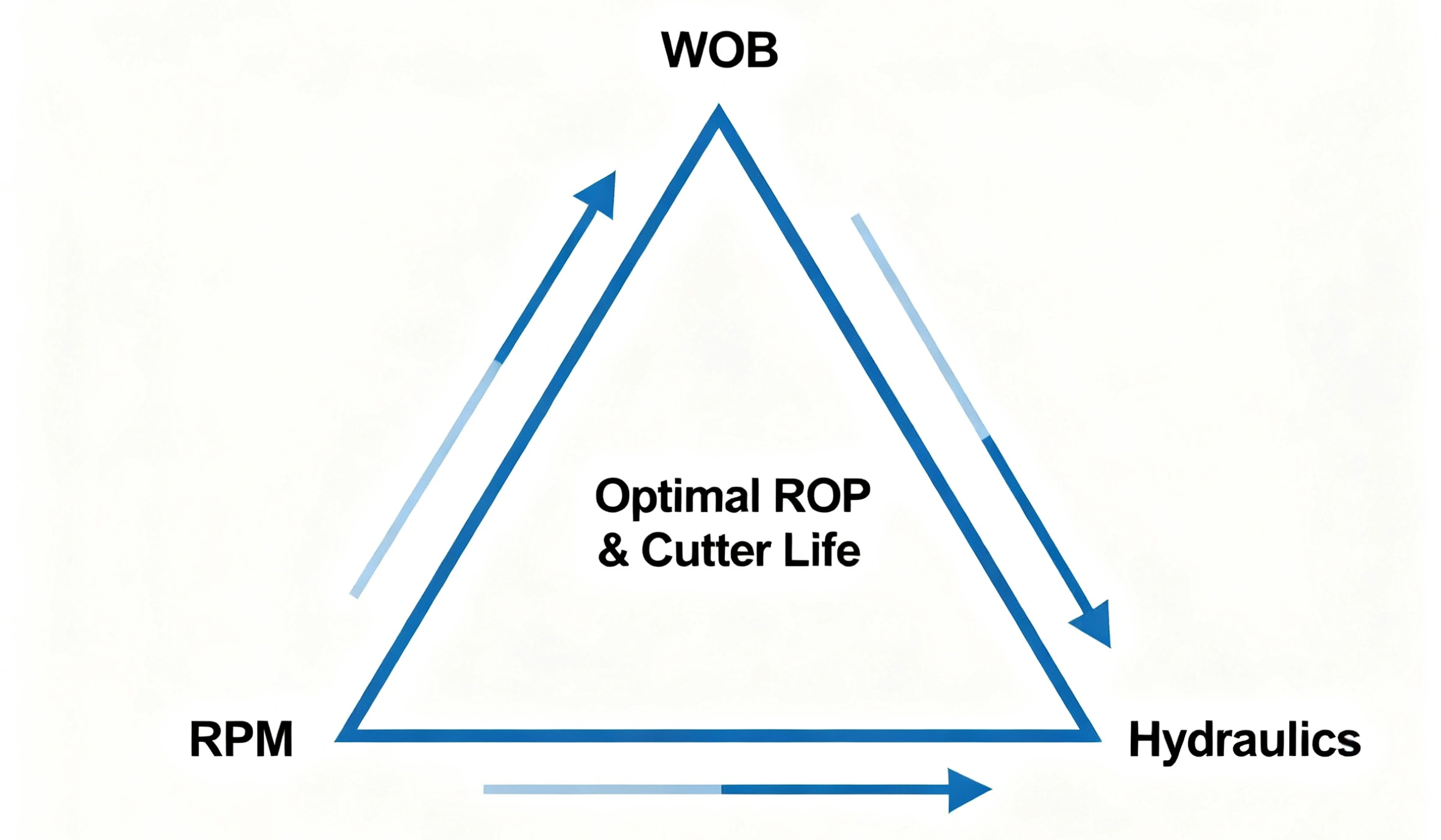

The Three Levers of Optimization

1. Weight on Bit (WOB) – Applying the Right Pressure

• Too little: Low Rate of Penetration (ROP).

• Too much: Accelerated wear, cracked cutters, or even catastrophic failure.

Best Practice:

• Start moderate and adjust gradually.

• Hard formations (sandstone, limestone): Higher WOB may be necessary, relying on cutter toughness.

• Soft formations (shale, clay): Use lower WOB to avoid oversized cuttings and poor cleaning.

2. Rotational Speed (RPM) – Managing Heat and Efficiency

• Higher RPM = higher friction = more heat.

• Lower RPM = less heat but potentially slower ROP.

Best Practice:

• Soft formations: Higher RPM can maximize ROP if hydraulics can manage the cuttings.

• Hard/abrasive formations: Lower RPM protects the diamond table from heat damage.

• The sweet spot is often a higher WOB / lower RPM combination in hard rock.

GreatDrillbit’s cutters provide a wider operating window thanks to superior thermal resistance, giving drillers flexibility to adjust without sacrificing tool life.

 3. Hydraulics – The Cooling & Cleaning System

Hydraulics play a dual role:

1. Cooling the cutter (preventing thermal failure).

2. Cleaning the borehole (removing cuttings to avoid bit balling).

Best Practice:

• Maintain sufficient flow rates for bottom-hole cleaning.

• Watch for pressure spikes, which may indicate bit balling.

• Remember: Even the best cutter fails without proper cooling.

Optimized hydraulics act as a force multiplier, allowing GreatDrillbit cutters to sustain peak performance longer.

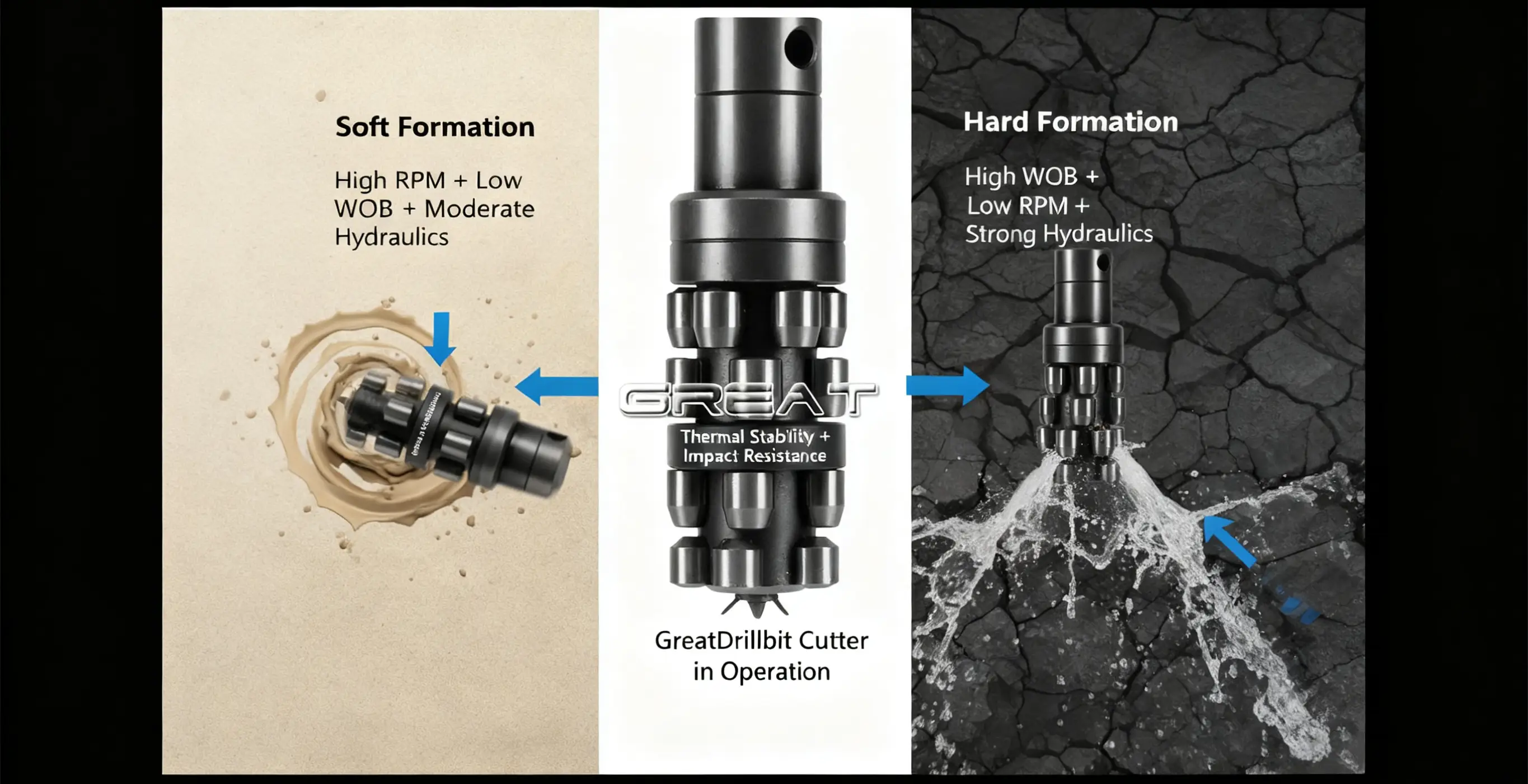

Putting It All Together – A Field Example

Imagine drilling through an interbedded formation of shale and sandstone:

• Start with balanced WOB/RPM for shale.

• On sandstone, slightly increase WOB for bite, while reducing RPM to manage heat.

• Ensure hydraulics are adjusted to handle cuttings from both formation types.

The synergy between WOB, RPM, and hydraulics is what unlocks consistent ROP and maximizes cutter lifespan.

Partner with Technology You Can Trust

Optimizing drilling parameters is not guesswork—it’s a process of monitoring, adjustment, and continuous learning. The payoff is significant: higher ROP, lower costs, and longer bit life.

GreatDrillbit’s PDC cutters are engineered with advanced thermal stability, impact resistance, and thicker diamond tables, giving drillers the flexibility to optimize parameters without fear of premature failure.

Ready to boost drilling efficiency? Contact GreatDrillbit today to discover which cutter series best fits your formation challenges.
